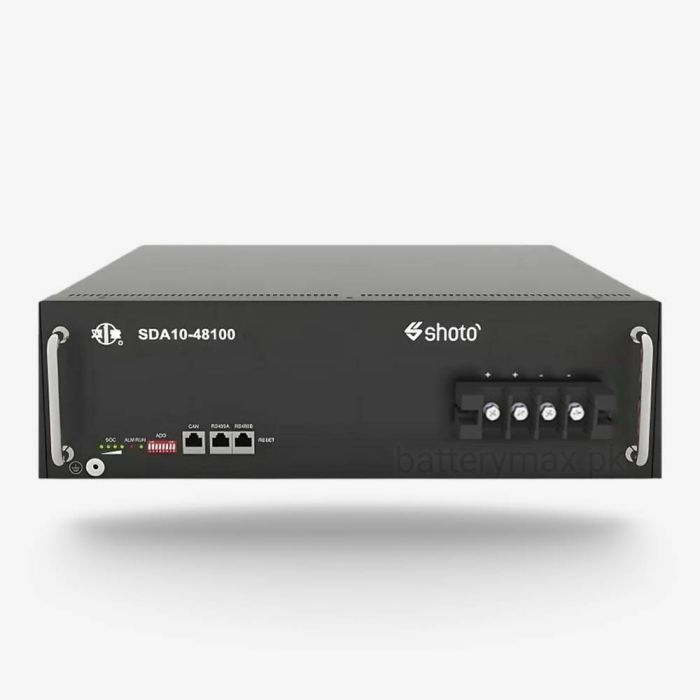

Shoto SDA10‑48100 48 V 100 Ah LiFePO₄ Battery

The Shoto SDA10‑48100 is a rugged 48 V, 100 Ah LiFePO₄ battery module, delivering around 5.1 kWh of energy. Encased in a compact 3‑unit rack-mount form, it’s built for demanding environments like telecom stations, solar installations, and critical DC power systems.

Technical Highlights

• High energy density: Compact 3U rack unit weighing ~41 kg

• Fast charge/discharge: Up to 100 A supports rapid cycling

• Smart BMS: Full monitoring and protections with RS‑232/485 interface and support for cascade communication

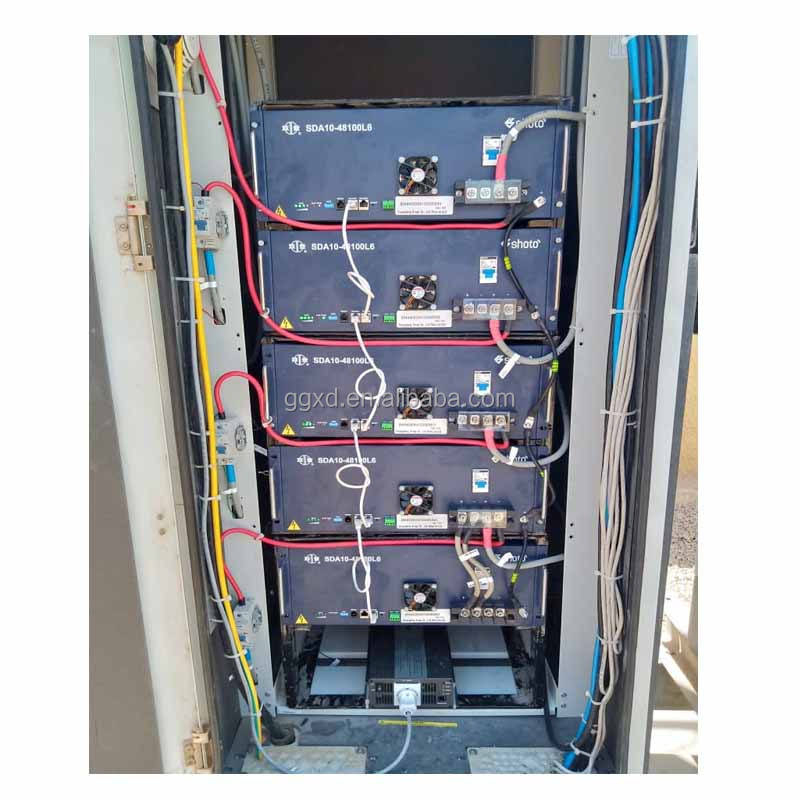

• Scalable: Up to 16 units can be paralleled for larger energy systems

• Robust design: Wide environmental tolerance, certified for telecom/back-up use

Equipped with an intelligent Battery Management System (BMS), it offers real-time monitoring of voltage, current, and temperature, alongside multiple protections—including overcharge, undervoltage, overcurrent, short circuit, and temperature extremes. Communication is via RS‑232 and RS‑485, allowing master/slave setups in parallel configurations (up to 16 units), and integration with remote monitoring systems

The battery supports high charge/discharge rates (up to 100 A) for rapid cycling, and performs reliably in a wide temperature range (-20 °C to +50 °C). Its compact size and certifications (ISO, CE, UL, UN38.3) make it ideal for professional installations.
