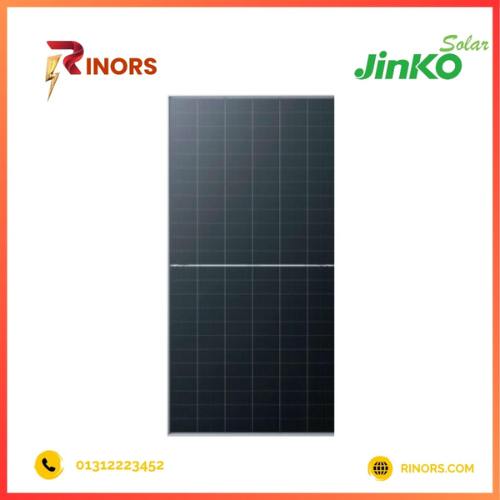

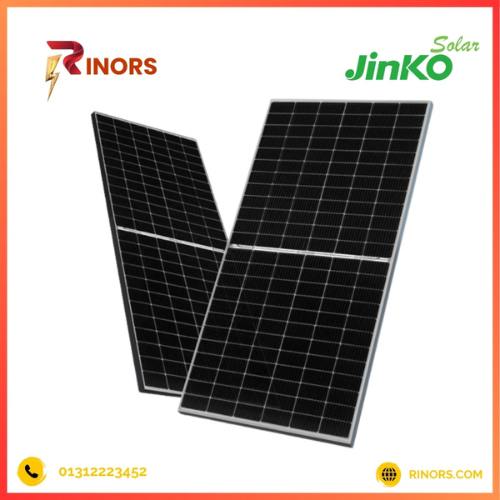

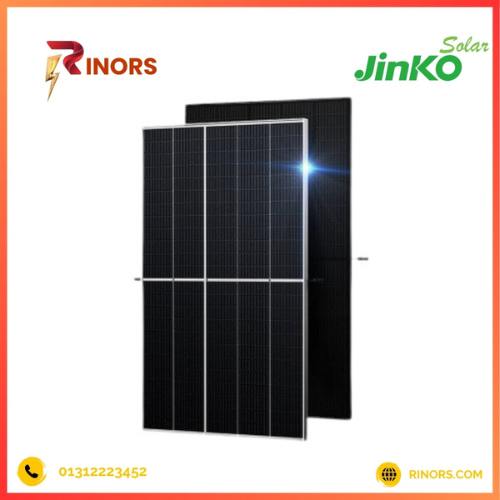

Jinko Tiger Neo 78HL4-BDV 650W Solar Panel
(0 reviews)
TK 18,200
🌞 650 W Peak Power – Bifacial N‑Type TOPCon cells, power-sorted 0 ~ +3 %
🔋 156 Half‑Cut Cells (2×78) – Minimizes resistive losses & boosts shade tolerance
📈 Up to 23.25% Efficiency – Highest output in the 625–650 W range
Harvesting new energy
🔁 Bifacial Gain – Rear‑side yield boost up to 30 % under high-albedo conditions
Harvesting new energy
🛡️ Mechanical Strength – Certified for 5400 Pa snow load and 2400 Pa wind load
Harvesting new energy
🌡️ Low Temp Coef. – –0.29 %/°C for stable performance in heat
Specification
Details
Power Output
650W
Panel Type
Monocrystalline Half-cell (Tiger Neo Technology)
Module Efficiency
~21.3%
Dimensions
2278 mm x 1134 mm x 35 mm
Weight
28.9 kg
Maximum System Voltage
1500 V DC
Operating Temperature
-40°C to 85°C
Temperature Coefficient (Pmax)
-0.34%/°C
Frame Material
Anodized Aluminum Alloy
Junction Box
IP68 rated
Warranty
12 years product warranty, 25 years linear power output warranty
Certifications
IEC 61215, IEC 61730, UL 61730, CE
